Description

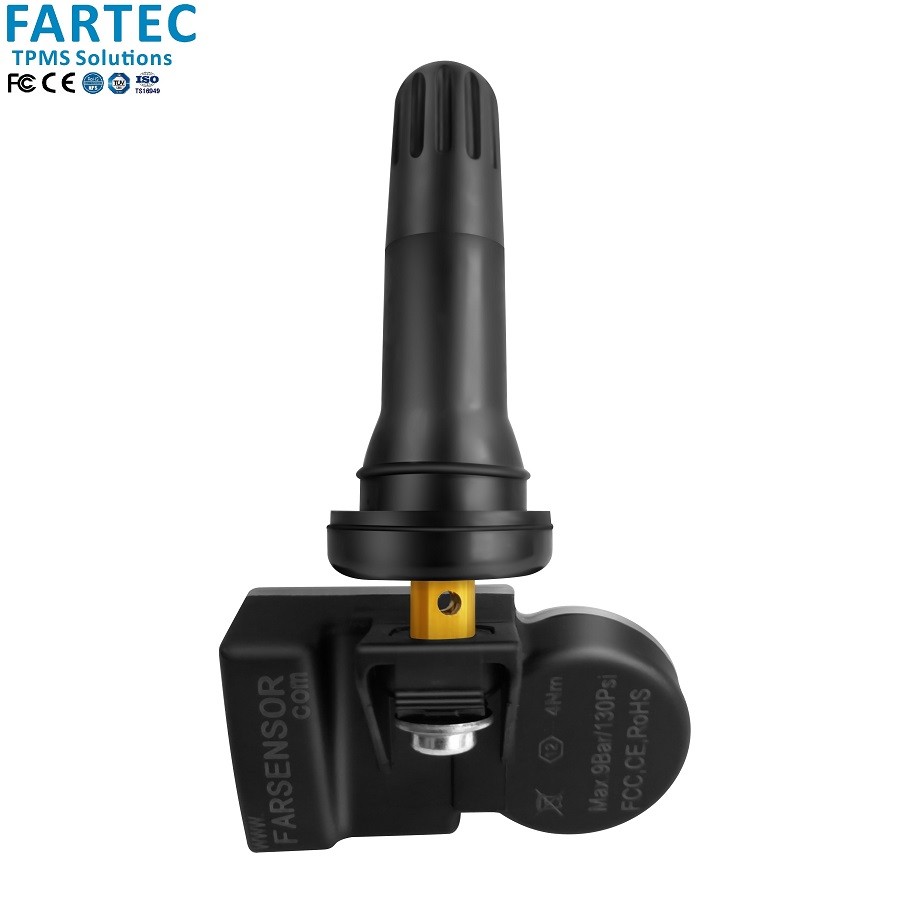

OE TPMS SENSOR for Haval 3641100XKR02A
FARTEC GROUP's latest programmable universal TPMS Sensor, perfect solution for OE and aftermarket wheels. Freescale microchip and automotive grade components are introduced to advance production technology for TPMS sensors with strict quality control of CE, FCC, RoHS and IATF16949 standard. With 315 & 433MHz in 1 Sensor, adjustable alloy valve angles, the sensor covers nearly the US ,
EU and Canadian OE fitted TPMS sensors.
Feasures:

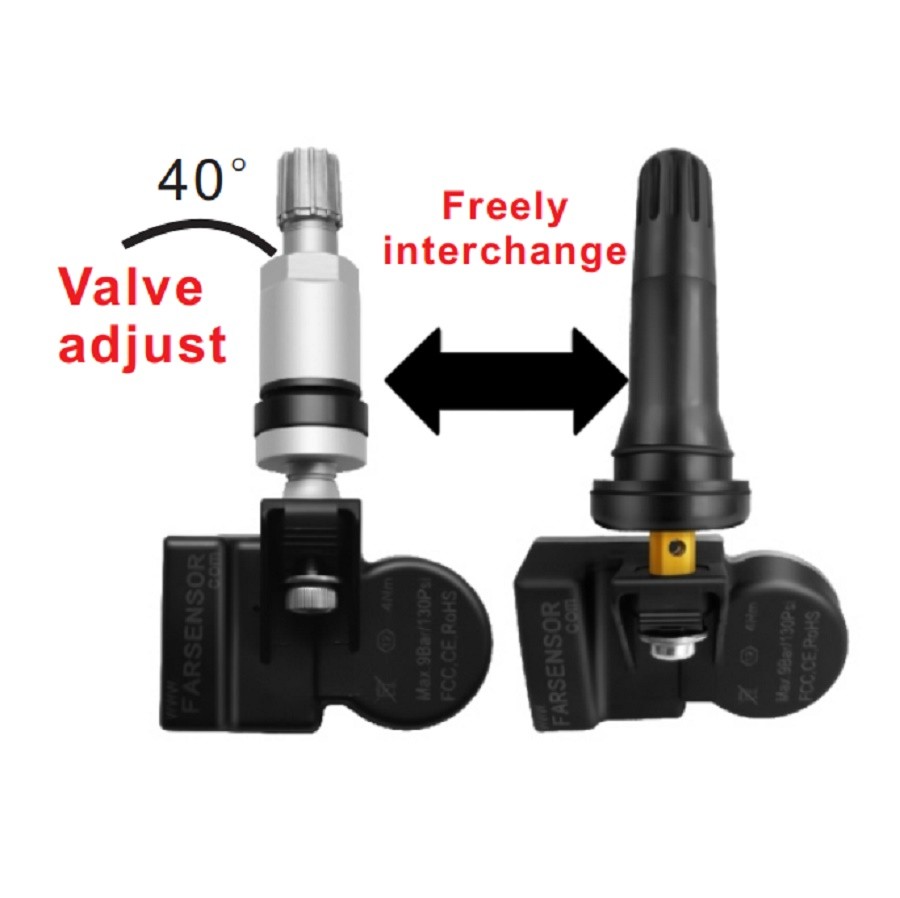

1. 2 in 1 Frequency: 315MHz/433MHz dual frequency.2. Sensor Valve is adjustable to meet more wheels. Metal valve and rubber can be changed freely.One sensor for all vehicles.
3. Duplicate ID to Replace OE TPMS sensors directly. No need to relearn sensor ID again.
4. No limited programming.
5. Available for different hard enviroment. Such as high speed, High and low temperature, Humidity, acid and alkali, and salt fog ect.
6. Wireless fast Modify ID. No need to reinstall tires.
7. Working temperature: -40 Celsius Degree to 105 Celsius Degree
8. Pressure range: 0- 800Kpa
9. Waterproof rate: IP67
10. Battery service time: 5 years
11. Warranty: 3 years
Technical Parameters:
| Operating temperature | -40 ° C~+125 ° C |
| Relative humidity | 45%~95% |
| Atmospheric pressure | 0Kpa~900Kpa |
| Installation position | automobile wheel hub |
| Storage temperature range | -40 ° C ~+125 ° C |
| Quiescent current | 0.3μA≤I≤1.0μA |
| Emission current | 1.0mA ≤I≤3.5mA |
| Operating voltage | 2.90V≤U≤3.50V |
| Emission power | 8dBm |
| Emission frequency | 314MHZ - 434.5MHZ |
| Weight | 35g |
| Service life | 5 years |
| Frequency deviation | ±30kHz |
| Temperature error | -20~70 ° C : ±3 ° C,-40~-20℃,70~125℃ :±5℃ |
| Pressure error | 0 ~50℃ :± 0.07bar, -40~0℃ , 50~85℃ :± 0.1bar |
